HDD Guardian review

HDD Guardian is a free program for Microsoft Windows devices that monitors the health status of hard drives using S.M.A.R.T technology.

Hard drives are probably the most important hardware components of electronic devices. The key reason for that is that they store data that users created, modified, downloaded or processed in other ways.

A hard drive failure could lead to data corruption which in turn would make data on the drive inaccessible. Backups are the prime option to protect against failing hard drives or data corruption on drives.

But computer users may also be proactive, by monitoring hard drives. The main idea behind this is to get notified in advance of impending hard drive failures to backup all important data and replace the drive.

HDD Guardian

HDD Guardian is a free program for Windows that monitors hard drives and Solid State Drives connected to the system.

Note: The program requires the Microsoft .NET Framework 4.5.

It uses S.M.A.R.T. technology for that which all modern hard drives support. Basically, what S.M.A.R.T. does is provide an interface that programs like HDD Guardian can tap in to retrieve information about the drive's status.

Among the many parameters are temperatures, error rates, bad sectors, ATA errors.

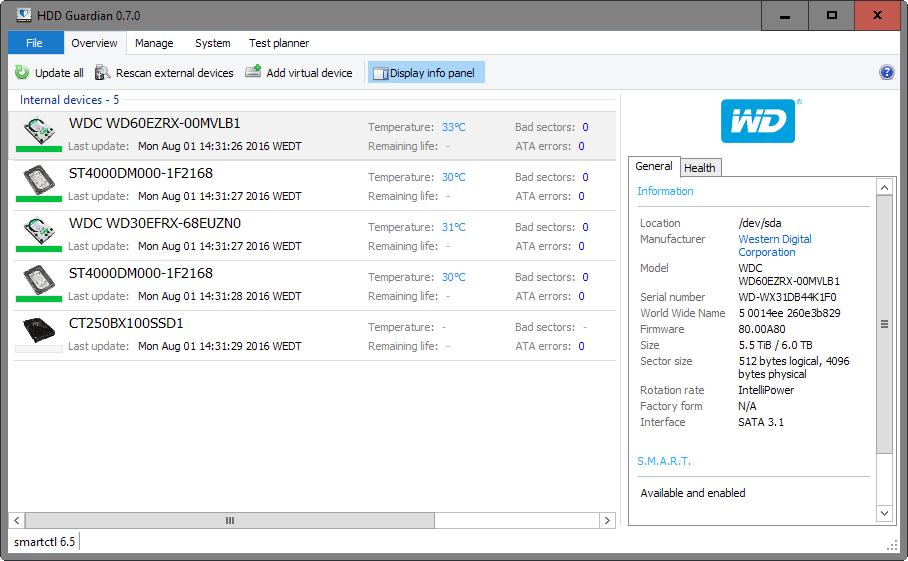

HDD Guardian displays all connected storage devices, SSD and HD, in its interface on start. Each device is listed with its name and last seen date. Additionally, the temperature, bad sectors, and ATA errors, and whether S.M.A.R.T. checks have been passed.

The information alone may point at a drive that is failing already or about to.

Information for the selected drive is displayed on the right of the table right on the program's start page. This includes basic information such as the manufacturer, location, model, interface or size. A click on the health tab displays reliability information that highlight reallocated sectors and events, pending sectors and uncorrectable sectors among other information.

Hard Drive Management

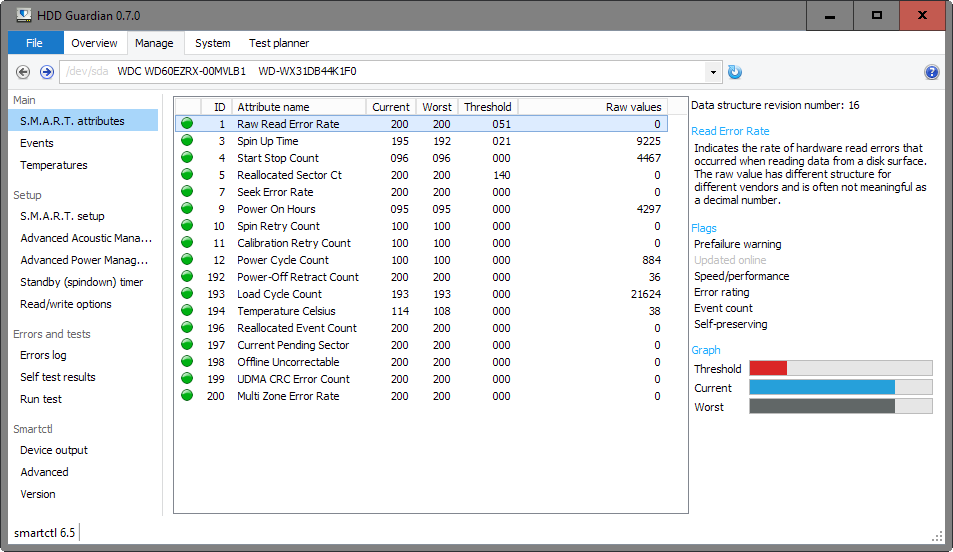

You may double-click on a drive to open the manage tab for it. The page lists various management related options on the left. It starts with a list of S.M.A.R.T attributes, events and temperatures.

Events may be most interesting as it lists value changes, for instance when the temperature increases or other S.M.A.R.T. values increase or decrease.

The setup group of options gives you some control over certain hard drive features provided that the drive supports it. You may change Advanced Acoustic Management and Advanced Power Management parameters, configure a standby timer, or set read/write options.

• Advanced Acoustic Management: Obsolete feature but still supported by older drives. It allows you to make a drive quieter or faster.
• Advanced Power Management: Gives you control over a drive's power management functionality.
• Standby: Sets the standby time before a drive enters idle mode.
• Read/Write options: enable or disable write cache features, or read look-ahead.

You may use HDD Guardian to run tests on drives. Tests may run from a couple of minutes to hours. The program supports four tests that you may run:

1. Offline data collection: starts a S.M.A.R.T. offline test, updating attribute values, and writes any error found to the log.
2. Short self-test: checks electrical and mechanical performance, and read performance of the disk.
3. Extended self-test: a longer and more thorough test that scans the entire disk surface.
4. Conveyance self-test: test used to identify damage incurred during transporting of device.

Settings and notifications

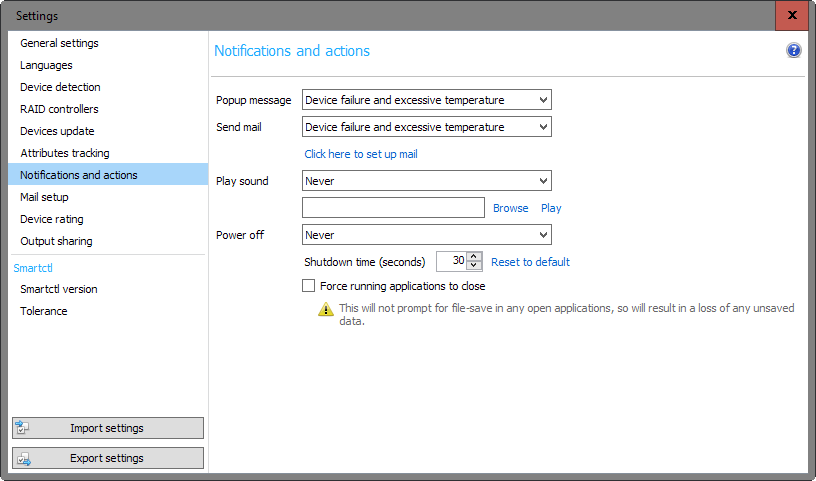

HDD Guardian displays popup messages on device failures or excessive temperatures. You may change that and many other options in the settings.

For instance, instead of displaying a popup message, you may have the program power off the computer, or play a sound instead.

You may also set it up to run on Windows start, change device update intervals, or change attributes tracking and warnings. Settings can be imported and exported.

Verdict

HDD Guardian is a well designed hard drive monitoring program for Microsoft Windows device. You may use it to run occasional test or keep it running all the time in the background to be warned when the program detects issues with one of the connected drives.
