gInk is an on-screen annotation software for Windows

On-screen annotation software is useful in a number of situations including during presentations or demonstrations. The main idea behind the open source application glnk is to provide Windows users with an easy to use yet powerful program to make on-screen annotations with ease.

Windows users may download the latest version of the program from the project's GitHub website. Those interested in the source code find it hosted there as well.

All it takes is to download the latest version of the software, extract the archive it comes in, and run the executable from the destination directory.

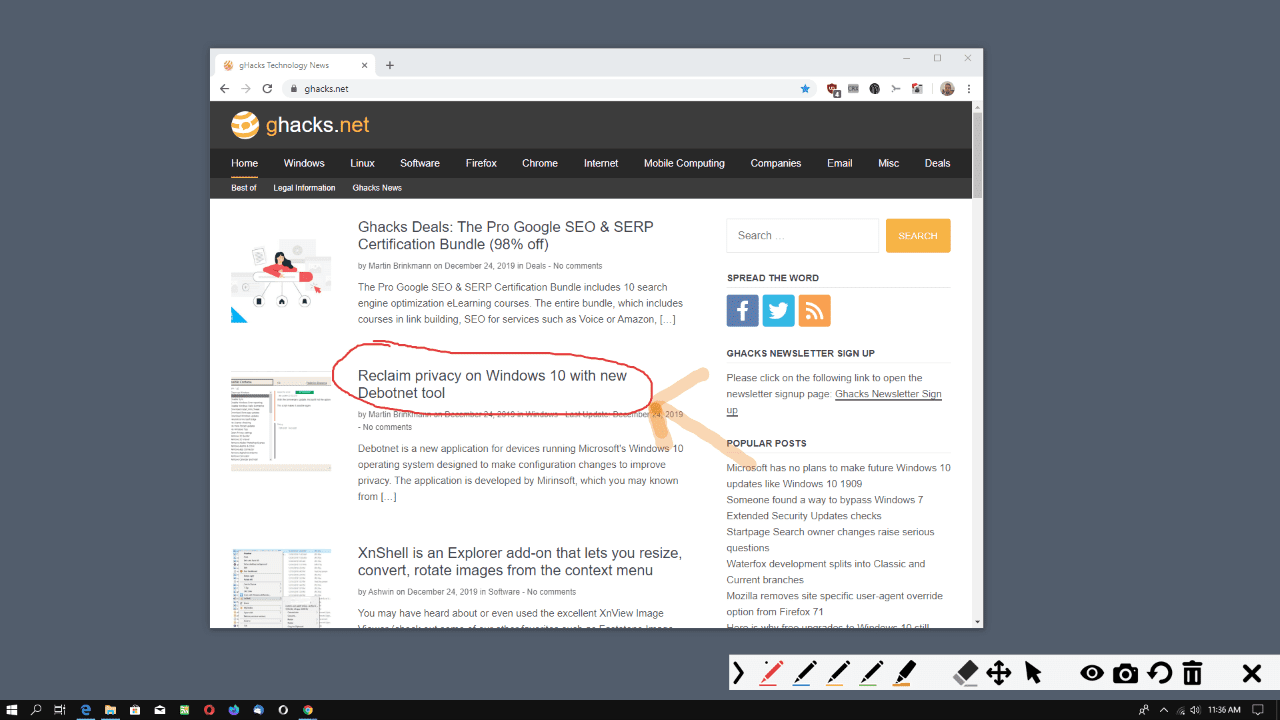

glnk

The on-screen annotation software sits idly in the background on start. You may launch it either with a left-click on the system tray icon or use the global hotkey Ctrl-Alt-G instead. The toolbar is displayed at the bottom and most on-screen activity is blocked at the same time.

Use hotkeys, the mouse or touch-input to select one of the available tools to start using it. Several pencils are provided to draw on the screen; there is also an eraser, an undo function, and a trashbin to destroy everything that has been annotated up to that point. The arrow icon does not paint arrows on the screen but is used to activate mouse functionality (to activate links or buttons). A click on the camera icon creates a snapshot of the screen.

The application supports mouse, pen, and touch input. Pen users may notice that it can distinguish between different pen pressures. Another useful feature is that glnk supports multi-display devices as well.

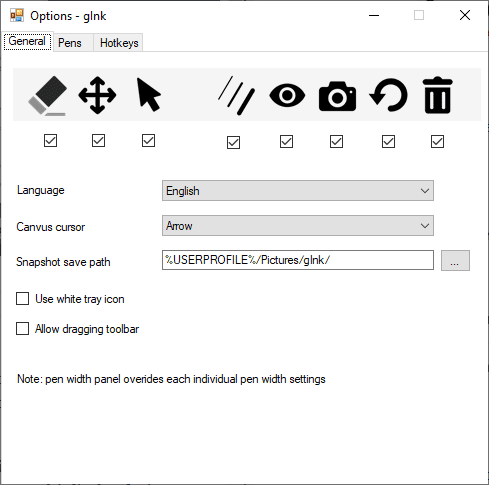

glnk options

The options of the open source software provide additional settings. You may select the drawing tools that you want displayed when you invoke the toolbar. All but the pen width panel are displayed by default and all but the pencil selection options may be removed from the toolbar.

Other options provided include the ability to drag the toolbar around on the screen, to define up to ten pens each with its distinct color, alpha and width, and to set up or edit hotkeys (for each of the pens and tools).



Closing Words

gInk is a well-designed screen annotation software for Windows. It is portable and open source, and supports most tools and features that one would expect from a program of its kind. I'd like to see options to place some elements on the screen as well as text. While you can create those using the pens, it would make things easier if these would be provided by default.

Now You: have you used screen annotation programs in the past?
